| General |

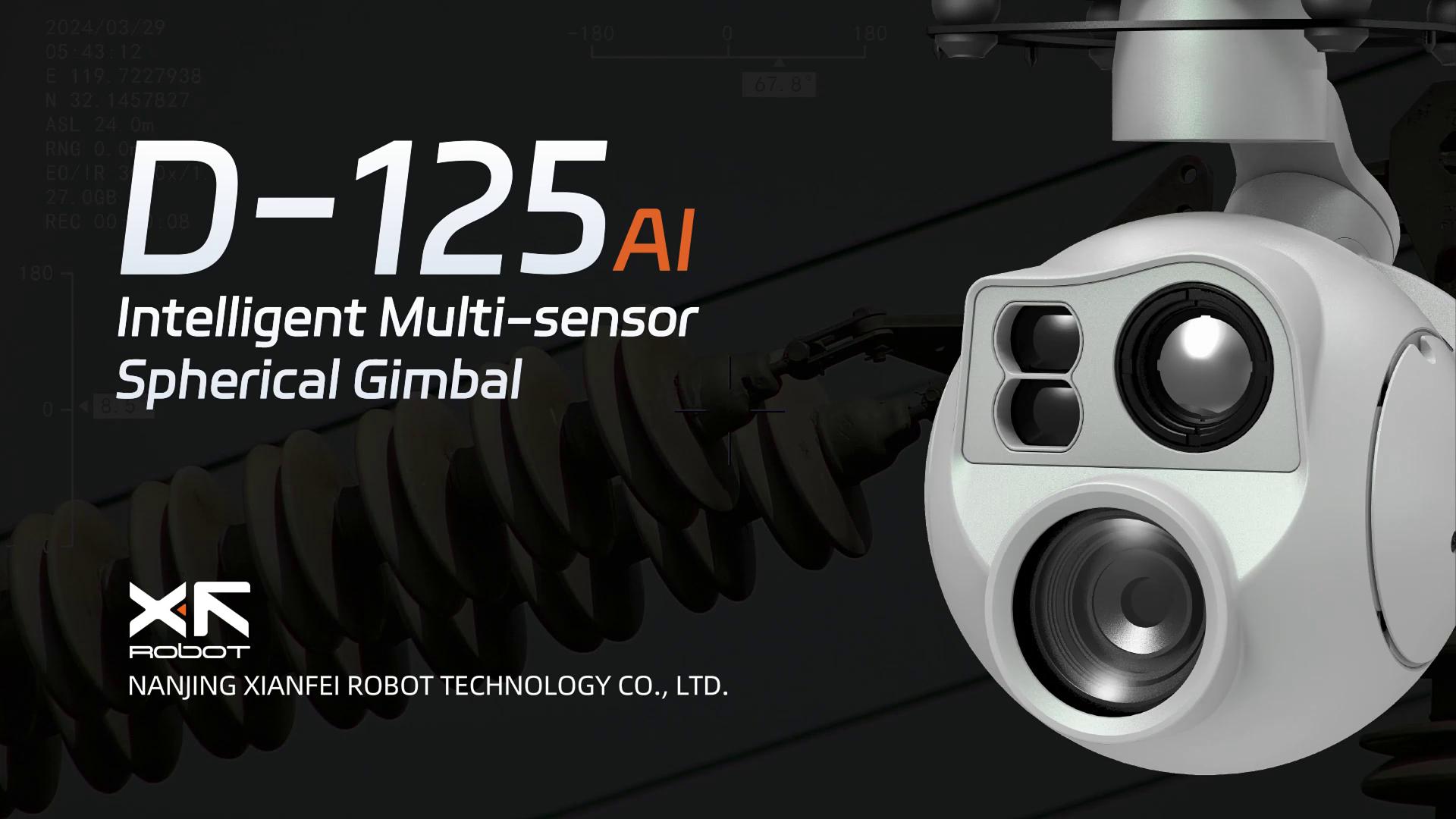

| Product Name | D-125AI |
| Dimensions | 142 x 125 x 187mm |
| Weight | 1055g |
| Operating Voltage | 20 ~ 53 VDC |
| Power | 10.7W (Static, ranging off）/ 40.0W (Peak, ranging on） |
| Mounting | Downward / Upward |
| Target Positioning Accuracy[1] | Horizonal Error：1.8m Vertical Error：0.7m | @ | Horizonal Distance：105m Relative Height：75m |
Horizonal Error：17.4m Vertical Error：6.7m | @ | Horizonal Distance：513m Relative Height：119m |
Horizonal Error：33.8m Vertical Error：13.7m | @ | Horizonal Distance：1003m Relative Height：246m |
| Gimbal |
| Gimbal Type | 3-axis Nonorthogonal Mechanical Stabilization |
| Angular Accuracy | ±0.01° |
| Controllable Range | Pitch: -120°～40°, Roll: ±40°, Yaw: ±360°constantly |
| Max Controllable Speed | ±200°/s |
| Zoom Camera |
| Image Sensor | 1/2.8-inch CMOS, Effective Pixels: 4.09M |
| Lens | Actual Focal Length: 4.7~141mm (Equivalent focal length: 27.9~837mm) Aperture: f/1.5~f/4.0 HFOV: 59.5°～ 2.2° VFOV: 35.8°～ 1.2° DFOV: 66.6°～ 2.5° |
| Resolution | 2688(H) x 1520(V) |
| Pixel Size | 2.0μm(H) x 2.0μm(V) |
| Optical Zoom Rate | 30x |
| Equivalent Digital Zoom Rate | 4x |
| Object Detection Distance | EN62676-4:2015 | Person[2]：3283m Light vehicle[3]：4315m Large vehicle[4]：9192m |
| Johnson Criteria | Person：37500m Light vehicle：115000m Large vehicle：245000m |
| Object Identification Distance | EN62676-4:2015 | Person：657m Light vehicle：863m Large vehicle：1838m |
| Johnson Criteria | Person：9375m Light vehicle：28750m Large vehicle：61250m |
| Object Verification Distance | EN62676-4:2015 | Person：328m Light vehicle：432m Large vehicle：919m |
| Johnson Criteria | Person：4688m Light vehicle：14375m Large vehicle：30625m |
| Thermal Camera |
| Thermal Sensor | Uncooled VOx Microbolometer |
| Lens |
Focal Length: 25mm (Equivalent focal length: 93.2mm) Aperture: f/1.0 HFOV: 17.5° VFOV: 14.0° DFOV: 22.3° |
| Resolution | 640(H) x 512(V) |
| Pixel Pitch | 12μm(H) x 12μm(V) |
| Equivalent Digital Zoom Rate | 8x |
| Spectral Band | 8~14μm |
| Sensitivity (NETD) | <50mk@F1.0@25℃ |
| Object Detection Distance | Johnson Criteria | Person：1042m Light vehicle：3194m Large vehicle：6806m |
| Object Identification Distance | Person：260m Light vehicle：799m Large vehicle：1701m |
| Object Verification Distance | Person：130m Light vehicle：399m Large vehicle：851m |
| Temperature Measurement | Optional (Temperature Measurement Type) |
| Temperature Measurement Method | Spot Measurement, Area Measurement |
| Temperature Measurement Range | High Gain: -20°C~150°C Low Gain: 0°C~550°C |
| Temperature Alert | High-temp Alert, Low-temp Alert |
| Sun Burn Protection | Supported[5] |
| Palette | White Hot, Black Hot, Tint, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2 |
| Laser Range Finder |
| Wavelengt | 905nm |
| Max Laser Power | 1mW |
| Beam Angle | 2.5mrad |
| Beam Diameter | 0.25m@100m |
| Laser Safety | Class 1M（IEC 60825-1:2014） |
| Measurement Accuracy | ±0.3m（≤ 300m）/ ±1.0m（>300m） |
| Measurement Range | 5-2000m (ϕ 12m vertical surface with 20% reflectivity) |
| AI Multi-object Detection & Tracking |
| Object Identification Size | ≥ 30x20 px |
| Object Identification Rate | ≥ 85% |
| Object Identification Quantity | ≤ 50 |
| Target Tracking Size | 16x16~256x256 px |
| Tracking Deviation Refresh Rate | 30Hz |
| Tracking Deviation Output Delay | ≤ 60ms |
| Target Pixel Error | ≤ ±1 px |
| Tracking Speed | >24 px/ frame |
| Target Memory Time | >5s |
| Image & Video |
| Image Format | JPEG |
| Maximum Image Resolution | 1920 x 1080 |
| EXIF | Shooting point coordinate |
| Video Format | MP4 |
| Maximum Video Resolution | Stream: 1920 x 1080 @25fps Recording: 1920 x 1080 @30fps |
| Stream Encode Format | H.264，H.265 |
| Stream Network Protoco | RTSP |
| Storage |
| Supported SD Cards | Supports a U3/V30 or above MicroSD card with a capacity of up to 256GB |
| Environment |
| Operating Temperature | -20℃～50℃ |
| Storage Temperature | -40℃～60℃ |
| Operating Humidity | ≤85%RH (Non-condensing) |
