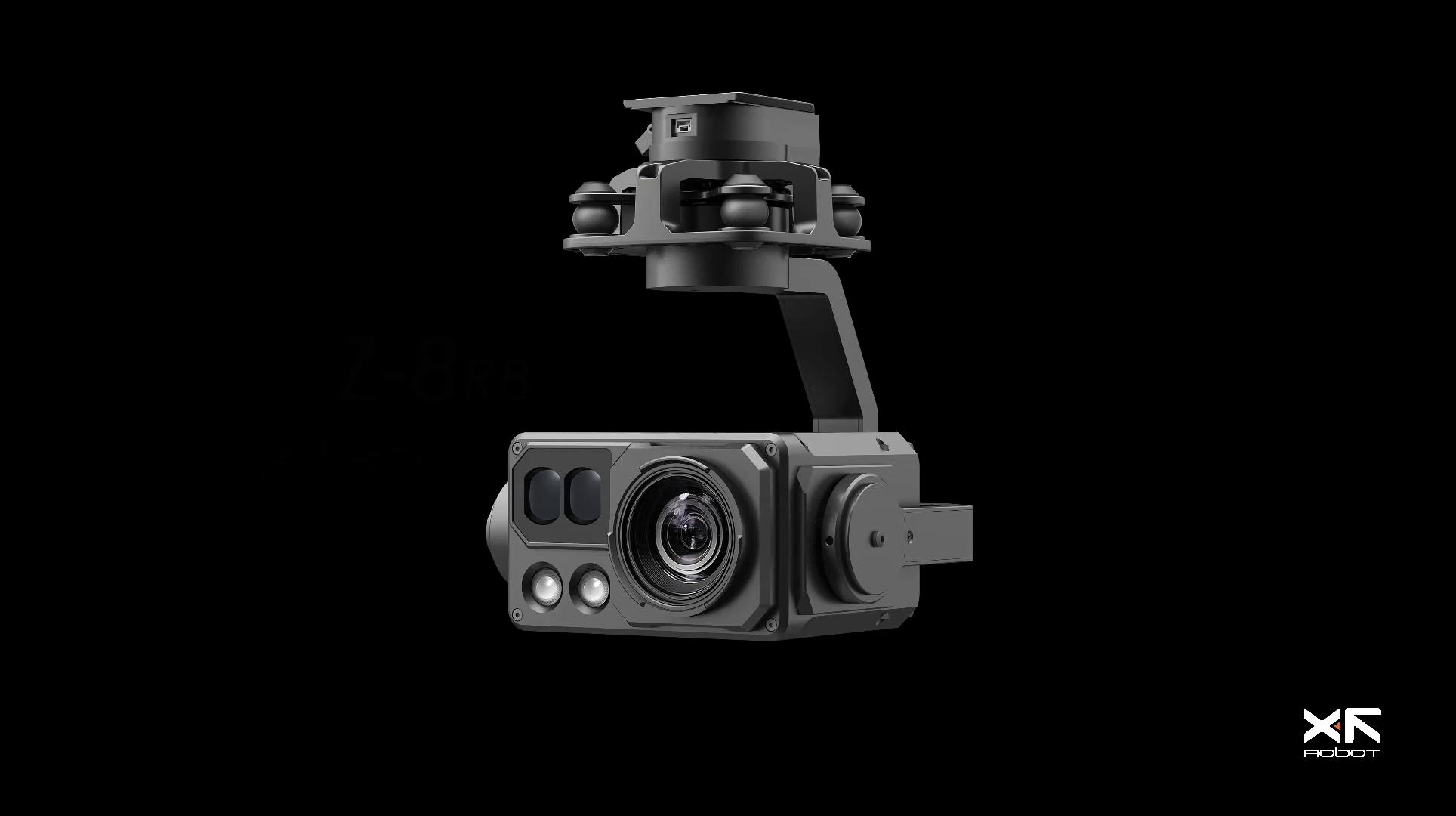

Z-8RB Night Vision Ranging Gimbal Camera
Price:
$5,080.00
Collection:0
Quantity:
Detail
Specs
Downloads
Sales records(0)

Characteristics

· Features AI multi-object detection and tracking, which can constantly track one of the persons and vehicles intelligently identified in the image.

· Carries a 360x hybrid zoom (30x optical zoom) camera, an 1800m laser range finder and 2 laser lighting modules.

· 3-axis mechanical stabilized structure which is able to spin continually around its yaw axis.

· With the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the Z-8RB provides a stabilization accuracy at ±0.01°.

· Image supports shooting point coordinate EXIF save.

· Support remote screen projection and docking command platform.

· Can be mounted tool-lessly onto unmanned aerial vehicles with its quick-release port.




Item

Parameters

General

Dimensions

150 x 144 x 172mm

Weight

870g

Operating Voltage

20~53V

Power

19W (AVG, ranging & lighting off)

57.6W (Stall, ranging & lighting on)

Protection Rating

IP43

Gimbal

Angular Vibration Range

±0.01°

Maximum Controllable Speed

Pitch: ±200° /s, Yaw: ±200° /s

Controllable Range

Pitch: -120°~+60°, Yaw: ±360° constantly

Zoom Camera

Image Sensor

1/2.8CMOS; Effective Pixels: 2.07M

Lens

Focal Length: 4.3~129mm

HFOV: 63.7°~ 2.3°

VFOV: 40°~ 1.4°

DFOV: 52.1°~ 2.8°

Optical Zoom Rate

30x

Equivalent Digital Zoom Rate

12x

Aperture

F2~F16

Electronic Shutter Speed

1/2~1/2000s

Object Detective Distance

EN62676-4:2015

Person[1]: 1947.1m

Vehicle[2]: 2559.1m

Johnson Criteria

Person: 22241.4m

Vehicle: 68206.9m

Object Identification Distance

EN62676-4:2015

Person: 389.4m

Vehicle: 511.8m

Johnson Criteria

Person: 5560.3m

Vehicle: 17051.7m

Object Verified Distance

EN62676-4:2015

Person: 194.7m

Vehicle: 255.9m

Johnson Criteria

Person: 2780.2m

Vehicle: 8525.9m

Laser Range Finder

Wavelength

905nm

Measuring Range

5-1800m (ϕ12m vertical surface with 20% reflectivity)

Measuring Accuracy

±0.3m(<300m) / ±1.0m(>300m)

Beam Angle

2.5mrad

Measuring Method

Pulse

Max Laser Power

1mW

Laser Safety

Class 1M (IEC 60825-1: 2014)

Laser Lighting Module

Wavelength

850±10nm

Laser Power

0.8W x2

Beam Angle

+ 30°

Effective Illumination Distance

200m

Laser Safety

Class 3B (IEC 60825-1:2014)

AI Multi-object Detection & Tracking

Tracking Deviation Refresh Rate

50Hz

Tracking Deviation Output Delay

15ms

Minimum Target Contrast

5%

Target Memory Tracking

100frames / 4s

Object Size

16x16 ~ 128x128px

Image & Video

Output Video Resolution

1080P@30fps

Store Video Resolution

1080P@30fps

Image Resolution

1920 x 1080

Stream Encode Format

H.264, H.265

Stream Network Protocol

RTSP, UDP

Supported SD Card

Supports a TF card with a capacity of up to 128GB

Environment

Operating Temperature

-20℃~60℃

Storage Temperature

-20℃~70℃

Operating Humidity

≤85%RH (Non-condensing)

[1] Person: 1.8 x 0.5m

[2] Vehicle: 4.2 x 1.8m






Release and Upgrade

Z-8RB Release and Upgrade Records

2025-09-19

pdf



Software

Dragonfly_XF_V4.2.0611

2025-06-16

rar‍‍

GCU_Assistant_V2.1.1225_XF

2024-12-25

rar

GCU_Config_V2.0

2024-06-17

rar

QGC_Andriod_XF_V2.5.3.0909

2025-09-19

rar‍‍‍

QGC_Windows_XF_V2.5.3.0909

2025-09-19

rar



Firmware

Gimbal_Upgrade_package_V3.8

2025-07-14

rar

GCU_Upgrade_package_VA3.0

2024-06-17

rar



Document

Z-8RB-NWI_Ver3.0.0 Specifications

2024-07-22

pdf

Z-8RB User Manual-XF (A5)V3.0

2024-07-25

pdf

GCU Private Protocol-XF(A5)V2.0.62024-10-25

pdf

GCU User Manual-XF(A5)V1.12024-08-29

pdf

GCU_Assistant Quick Start Guide-(A5)V1.02024-12-25

pdf



Blueprint

Z-8RB_3D

2023-06-09

stp

GCU_3D

2023-06-09

stp

MD-TUB_Ver2.0_3D

2023-06-09

stp
